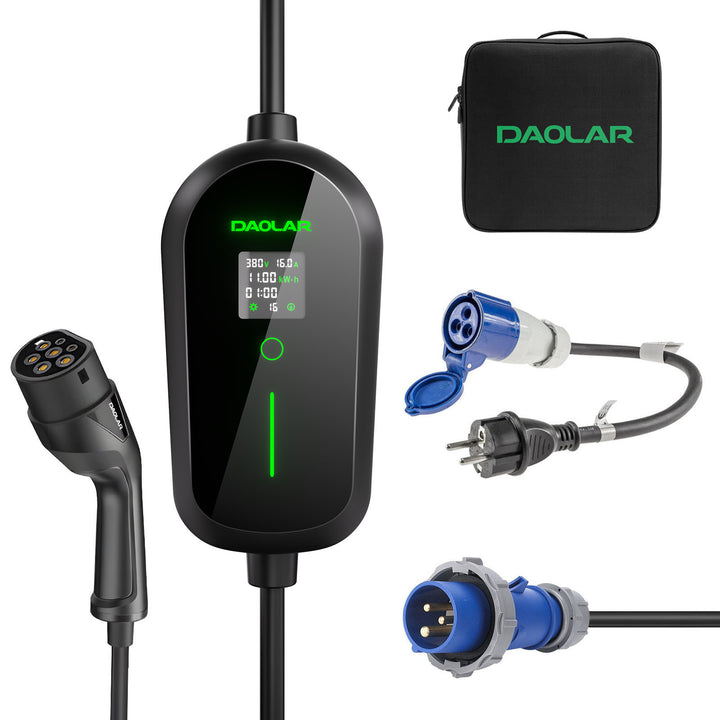

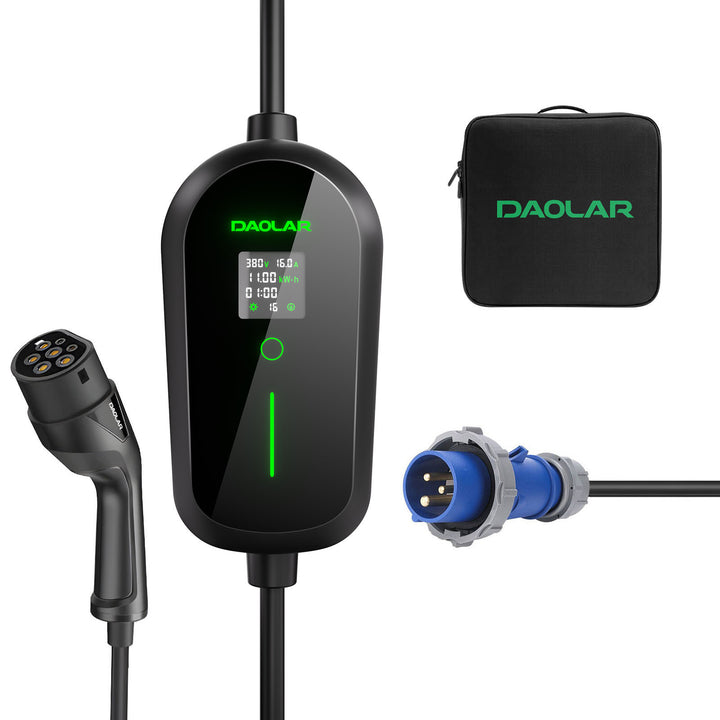

Daolar 8H Timing 7KW EV Charger 32A CEE plug 5M/10M cable Type 2 Electric Vehicle Charger, Adjustable Current PHEV EV Car Charging Station
👉Compatible with all Type2 EVs and PHEVs
👉Schedule charging: 2H 4H 6H 8H
👉10A/16A/24A/32A Adjustable Current
👉IP65 Waterproof and Dustproof
👉CE / RoHS certification
-
Free Shipping:
Shipping from Europe with DHL -
24-Month Warranty:
Provide professional engineering services -
15 Days Return：
Simply return it within 15 days for an exchange -
Special discount:
Regularly hold product sale
Features:
✅ Easy to Use: Electric Vehicle Charger Compatible with most electric vehicles and PHEVs that meet Type 2 standards. It matches 1 phase blue 32A CEE socket, no installation is required.
✅ Smart Charging: Flexible power settings of 10A/16A/24A/32A adapt to your car charging circuit for enhanced safety. Schedule charging for 2H 4H 6H 8H, and manage your time effectively by setting start time to avoid peak charging periods. The charger is equipped with a 1.4-inch OLED screen that displays real-time information such as voltage, current, power, charging time, and temperature. Additionally, LED light flashes in different colors to indicate electric vehicle charging status and fault indications.

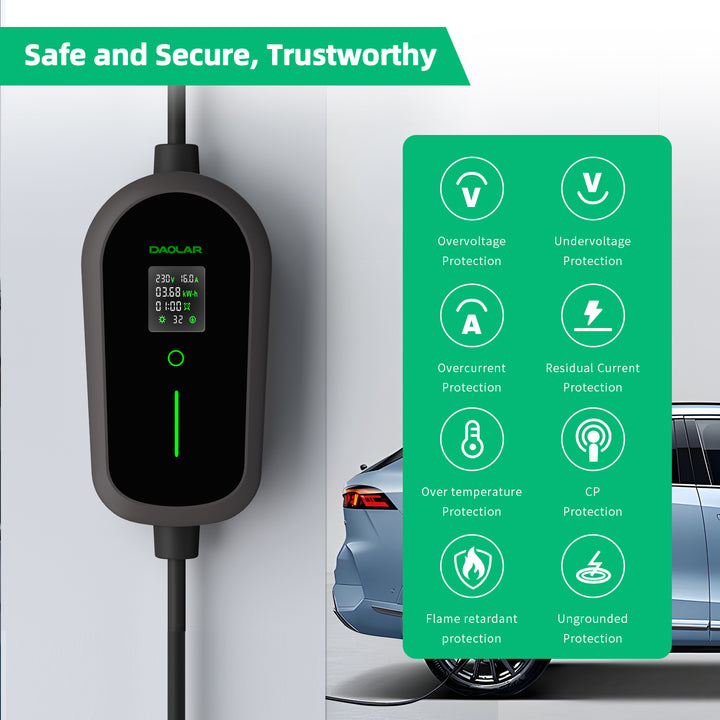

✅ Safety Guarantee: The charging unit's intelligent control chip offers multiple protection modes including leakage, over-current, over-voltage, under-voltage, overheating, and lightning protection. In the event of overheating, over-voltage, or leakage, the power supply will be cut off to prevent accidents.
✅ High Quality: Certified by CE and RoHS, and meets national standards. TUV certified cables. The charger has an IP65 protection rating, making it suitable for use in harsh environments. Its ABS casing is strong enough to withstand a load of 1.5 tons and a drop test from one meter at 10 tons.
✅ Excellent Service: Daolar provides 2 years warranty and lifetime technical support
FAQs
It ships from our EU warehouse with DHL. After payment, we will ship it within 24 hours, and it will arrive at your address within 3-7 days.
The charger is suitable for all car models. Before purchasing,you need to confirm this information: your car charging port (Type 2 or Type 1), charger plug, your car maximum power , and whether it supports 3-phase charging.
Charging time = car battery capacity / charging power. For example, if your car battery capacity is 55KWH and the charging power is 11KW, it can be fully charged in about 5H (=55KWH/11KW).
Specification
Model
F071A
Electrical Connectors for EV
Type 2 / IEC62196
Plug
3-pin 32A CEE plug (1-phase)
Voltage Range
AC 230V
Charging Current
32A max (10 16 24 32A Adjustable )
Maximum Power
7KW
Schedule charging
2H/4H/6H/8H
Cable Length
5M/10M
Cables size
3X6mm²+0.75mm²
Cable material
Oxygen-free pure copper (TUV certification)
Waterproof & Dustproof
IP65
Leakage protection current
≥23mA
Leakage protection action time
≤32ms
Standby power consumption
≤8W
Type2 plug protection temperature
≥85°C
Over temperature recovery temperature
≤75°C
Warranty
2 Years
Service Life
>10000 times
Connector material
Nylon + PC
Control box Material
ABS + PC Plastic(flame retardant grade UL94-0)
Certification
CE RoHS
Safety protection
Leakage, Short circuit, Overheating, Overvoltage, Overcurrent, Under-voltage, Lightning, CP abnormal protection
User Manual
great, very easy to install, wrks great, i chose 16A as a default, setting easy, charging time can be easily set. works great
Cabo de 6mm e com grande amplitude de escolha de potência, desde os 10A aos 32A.
Muito facil de usar e programar.
Com bantante informação no ecra.
I use this charger to recharge my car at home, I can charge my car in 10hr at 16a! It’s a really good, it’s very well done!
Mais um cliente satisfeito.
Equipamento versatil de facil transporte e utilização.
